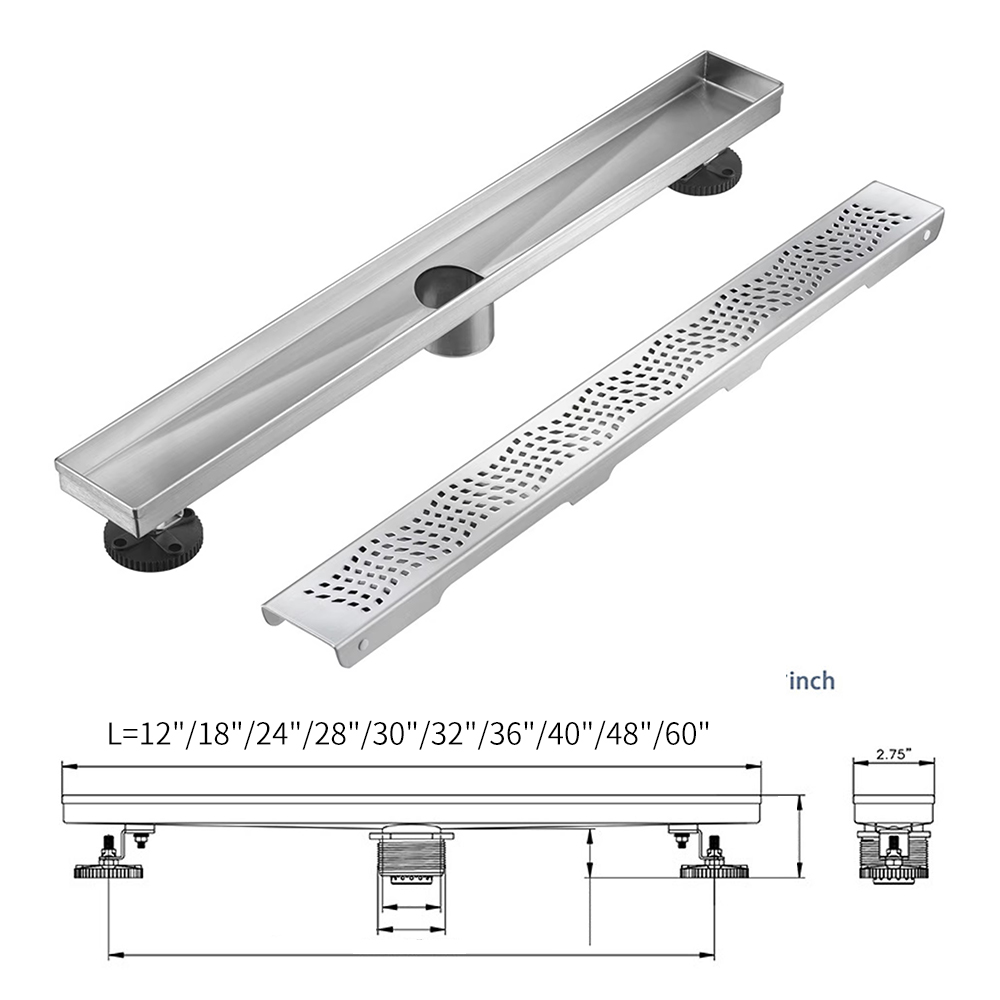

[Frequently-used Size]The size of linear drain is 28 inches in length and 2.75 inches in width. The diameter of outlet is 2 inches.JECONNY linear shower drains are available in lengths from 24 inches up to 60 inches and are equipped with our special technologies.

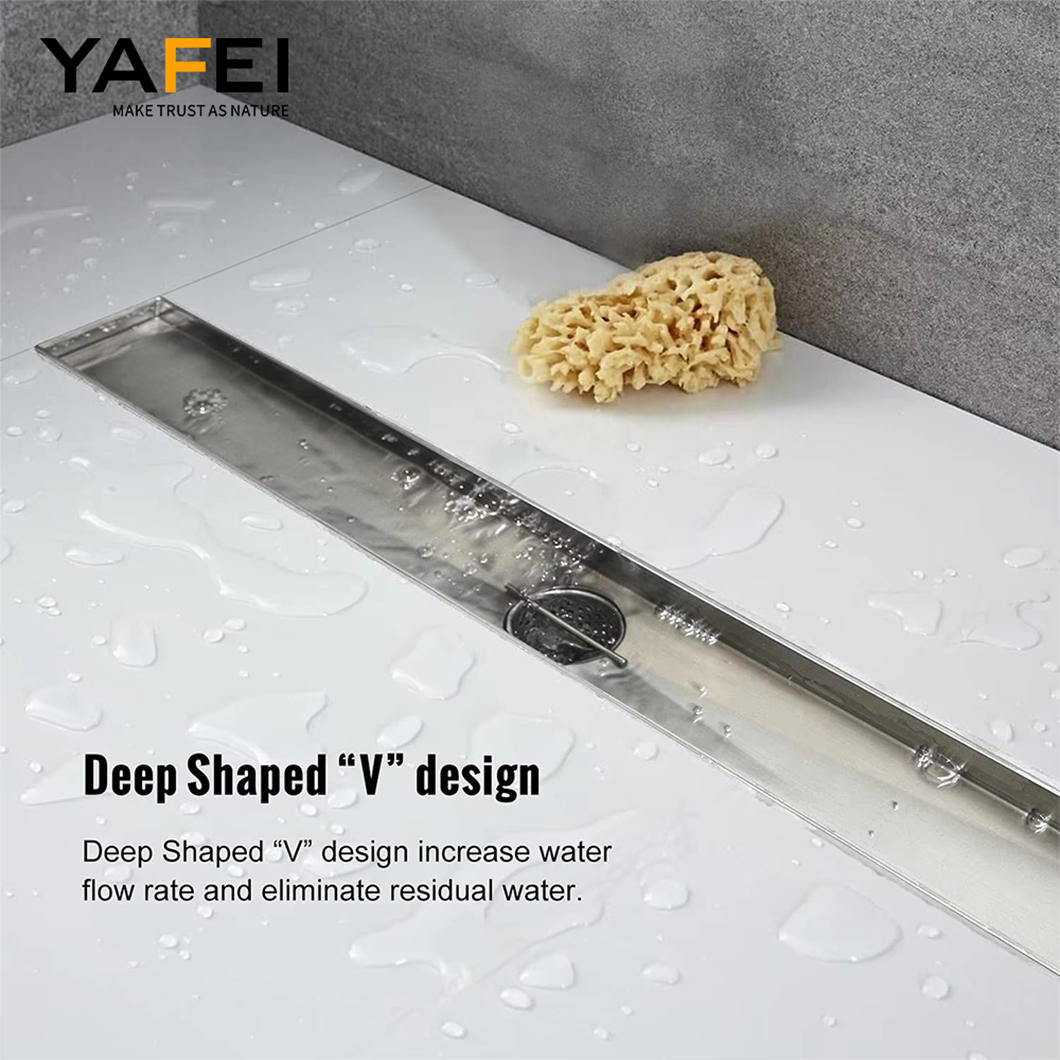

[Special Design]Linear shower drain with shallow 'V' profile to aide flow of water to shower drain outlet, that stops the overflow of water in case of oversights. The adjustable leveling feet make it that floors can be sloped on a single plane to horizontal line,solving the installation problem effectively caused by the unevenness of the ground.
[Low Maintenance]Channel body is made of high-quality SUS 304 stainless steel and therefore require little maintenance. Our drains are easy to clean thanks to the easy removable siphon and hair catcher.
[Wide Application]Accommodates all common thicknesses of ceramic tiles and stone coverings.Linear floor drains are suitable for use in bathrooms, kitchens, garages, swimming pools, basements and other areas to drain the water.
[Easy Installation]Easy Drain shower drains are supplied as a complete set and have just a few parts which enables a quick and easy installation. By using our comprehensive installation manuals, assembling an Easy Drain is completed in a matter of seconds.

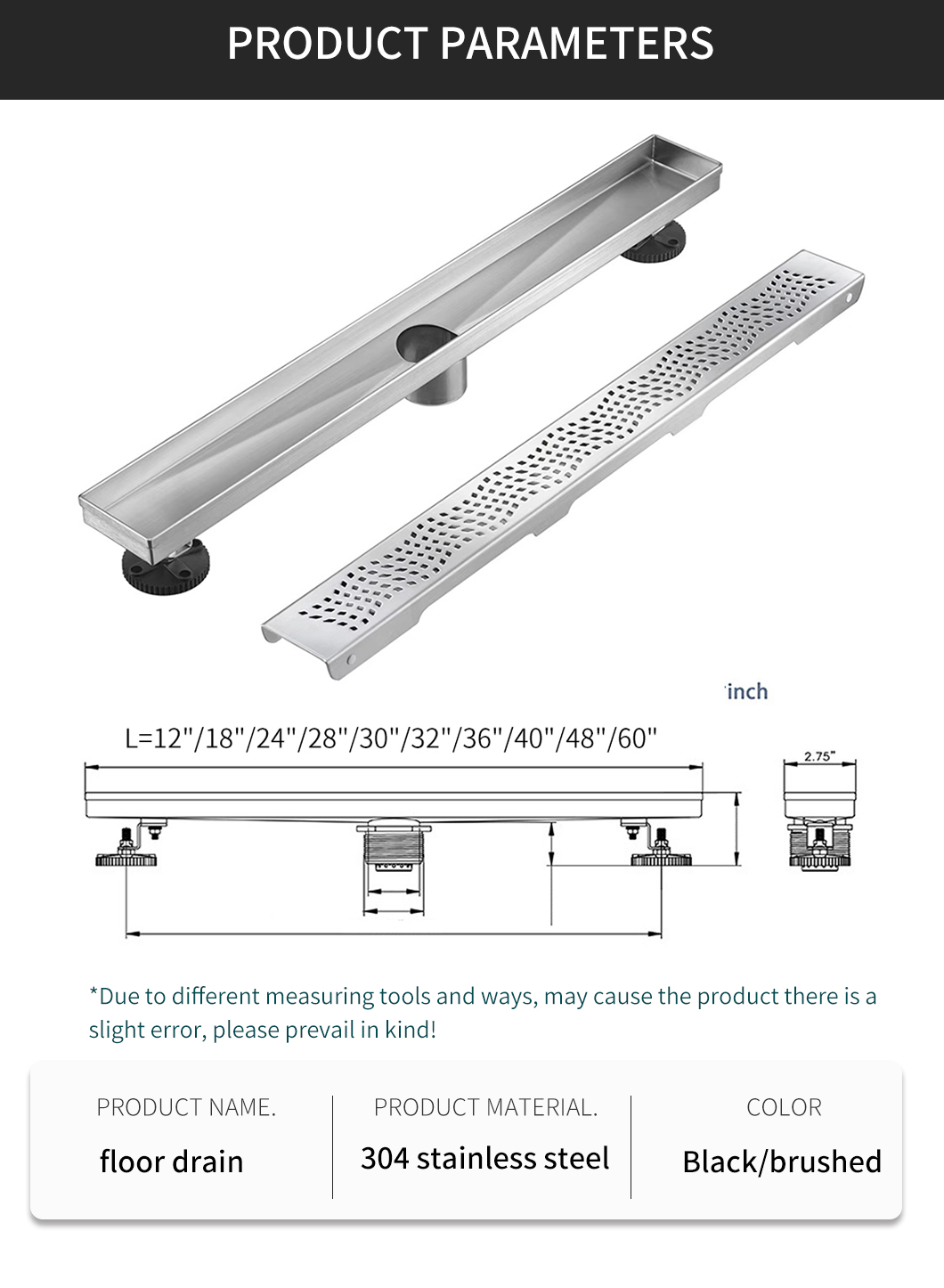

Parameter | Details |
Model Name | 41114 |

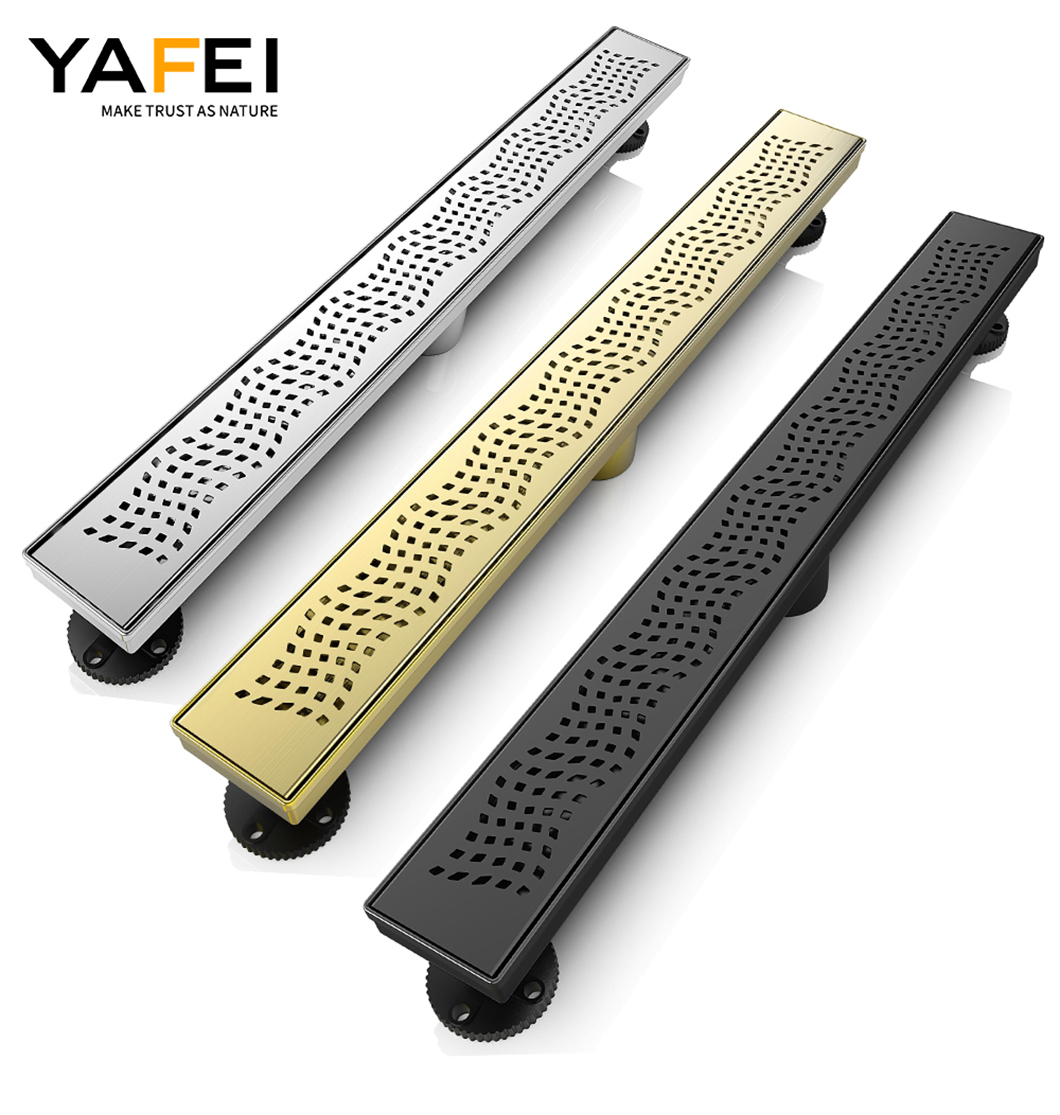

Color Options | Brushed Nickel, Matte Black, Rose Gold, Zirconium Gold, Bronze Black |
Length Available | 12", 24", 28", 32", 36" |
Outlet Diameter | 2 inch (compliant with standard plumbing systems) |
Width | 2.75 inch |
Material | 304 Stainless Steel |
Packaging | 1 set per box |
Adjustable Height Systems: 20-30mm vertical adjustment range for perfect tile alignment
Hair Capture Technology: Removable filter baskets with 2-3mm mesh size
Odor Lock Technology:
Water Seal: Traditional P-trap (requires regular use)
Dry Seal: Mechanical seals that block odors without water
Hybrid Systems: Combination of both technologies
Low Profile Design: 3-5mm height difference from finished floor
Anti-Slip Grates: Various surface treatments (textured, patterned)
Barrier-Free Access: Meets ADA/accessibility requirements
Grate Designs: Multiple pattern options (slot, square, circular)
Finish Variety: Chrome, brushed nickel, matte black, gold PVD
Length Options: Typically 300mm to 1200mm, custom lengths available
Tile-In Options: Flush grout lines for seamless appearance
Quick-Clean Systems: Lift-out grates and filters
Anti-Clog Design: Smooth interior channels prevent debris accumulation
Access Points: Removable end caps for pipe access
Leaks can occur due to
Improper Installation: This is the most common cause, especially errors in integrating the waterproofing membrane with the drain unit.
Structural Shifts: Ground settlement or pressure on pipes can cause connections to fail.
Material Failure: Although rare, damage to the drain body or seals can cause leaks.
| Feature | Linear Shower Drain | Traditional Point Drain |
|---|---|---|
| Drainage Speed | Faster (larger surface area) | Slower (smaller area) |
| Aesthetics | Sleek, modern, discreet | Functional, often more visible |
| Safety | Flush with floor, less trip hazard | Often requires a slight depression |
| Installation | More complex, often requires a pro | Simpler, more DIY-friendly |
| Maintenance | Requires regular grate cleaning | Also needs cleaning, but well-known |
| Cost | Higher initial investment | Generally more affordable |
