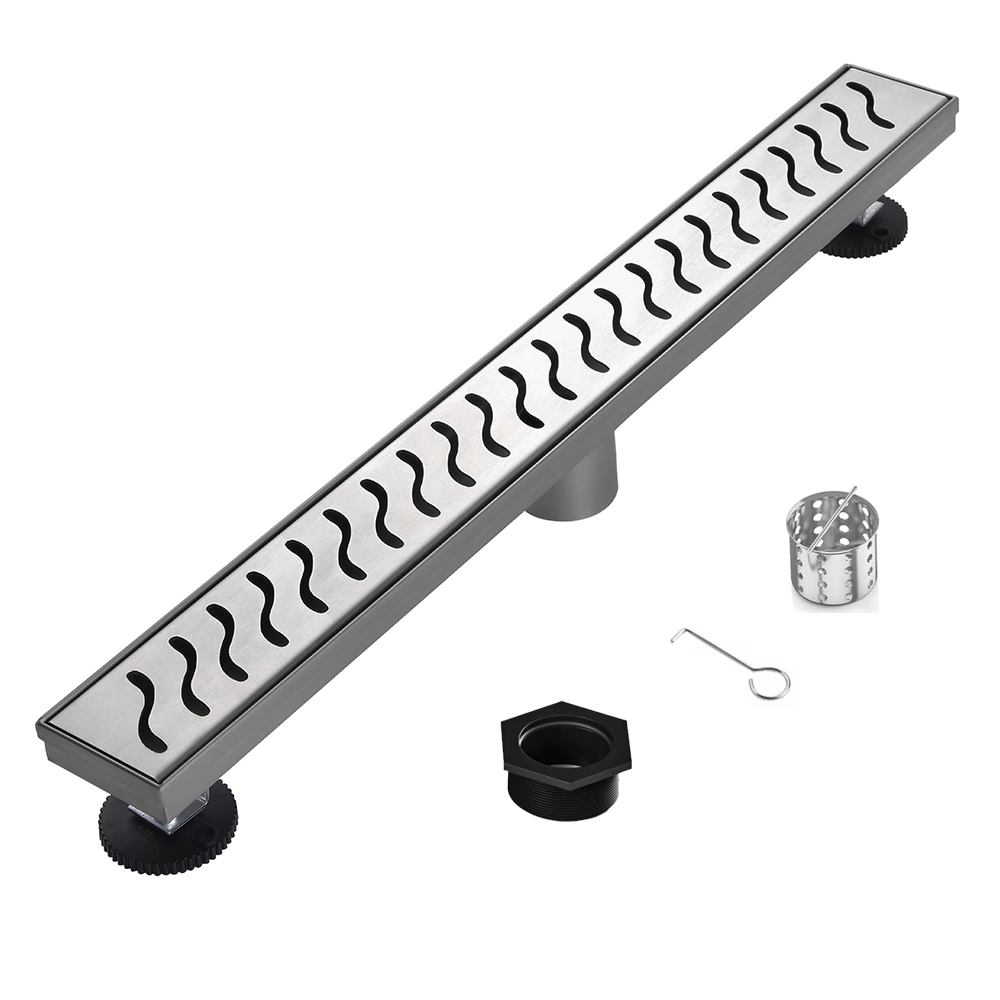

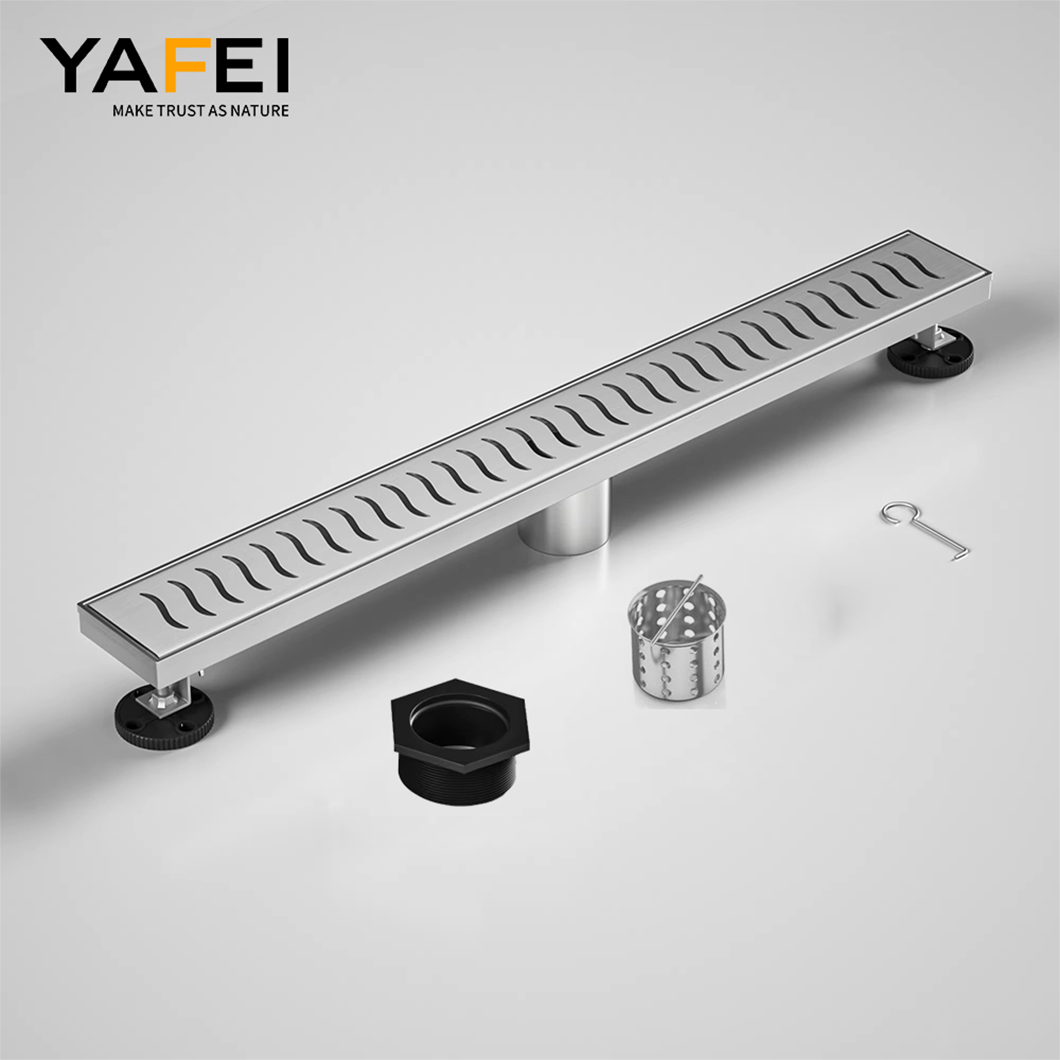

Linear Drain Material & Sizes: 24" length, 2.75" width, 2" central outlet. Black linear shower drain is made of durable AISI 304 stainless steel to protect against corrosion and rust. Heavy-duty steel grate ensures secure sealing and weight-bearing strength. Matte black plated drain cover is non-slip and scratch resistant

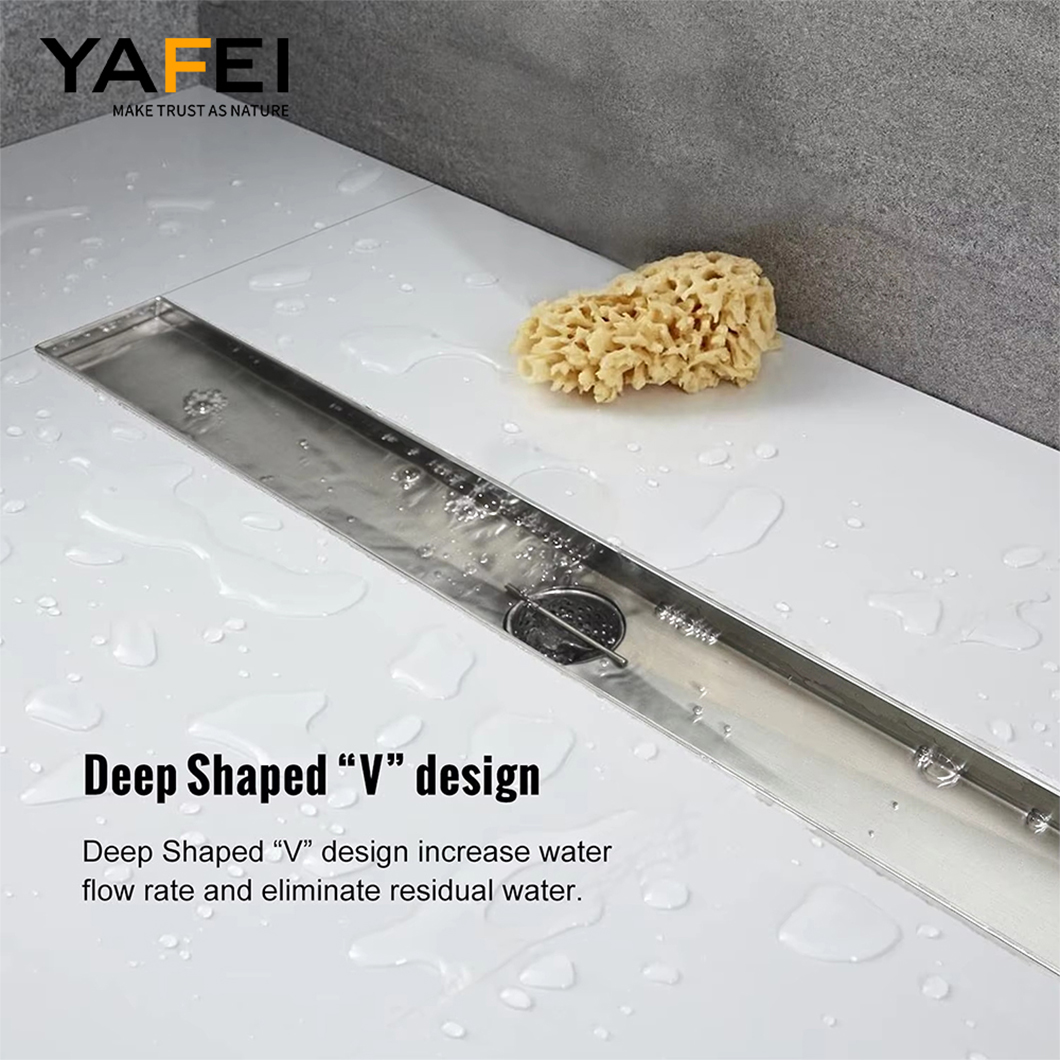

Faster Drainage: V-shaped drain sink design accelerates water flow to the central outlet, achieving 6.5-7 gallons/min (20% faster than traditional drains). Ideal for bathrooms, kitchens, balconies and basements, this black linear drain minimizes standing water

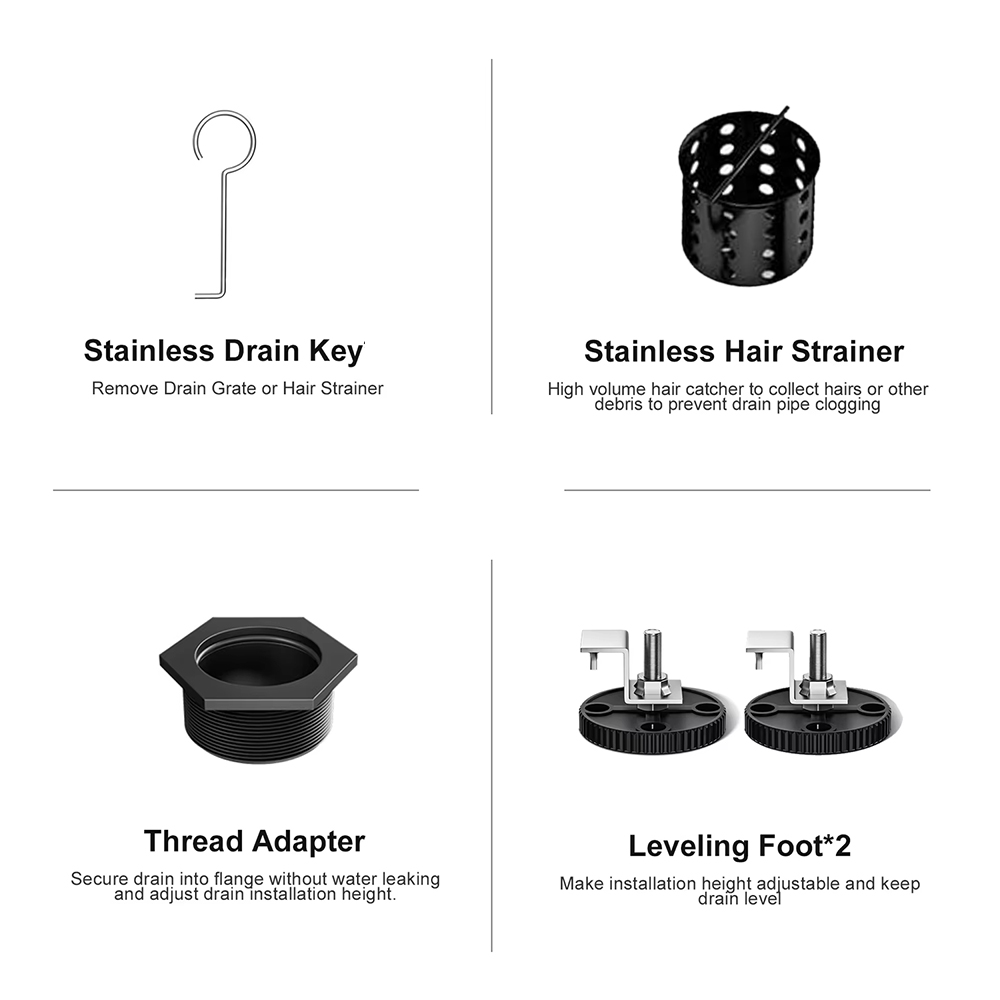

Easy to Install: Package includes step-by-step instructions and full accessories. Adjustable leveling feet on both sides allow the linear shower drain to be easily leveled with the floor. Threaded adapter adjusts the height of the rectangular floor drain and secures it to the base flange, leak-proof and compatible with most 2" PVC, ABS and cast iron drain flanges.
Easy to Install: Package includes step-by-step instructions and full accessories. Adjustable leveling feet on both sides allow the linear shower drain to be easily leveled with the floor. Threaded adapter adjusts the height of the rectangular floor drain and secures it to the base flange, leak-proof and compatible with most 2" PVC, ABS and cast iron drain flanges.

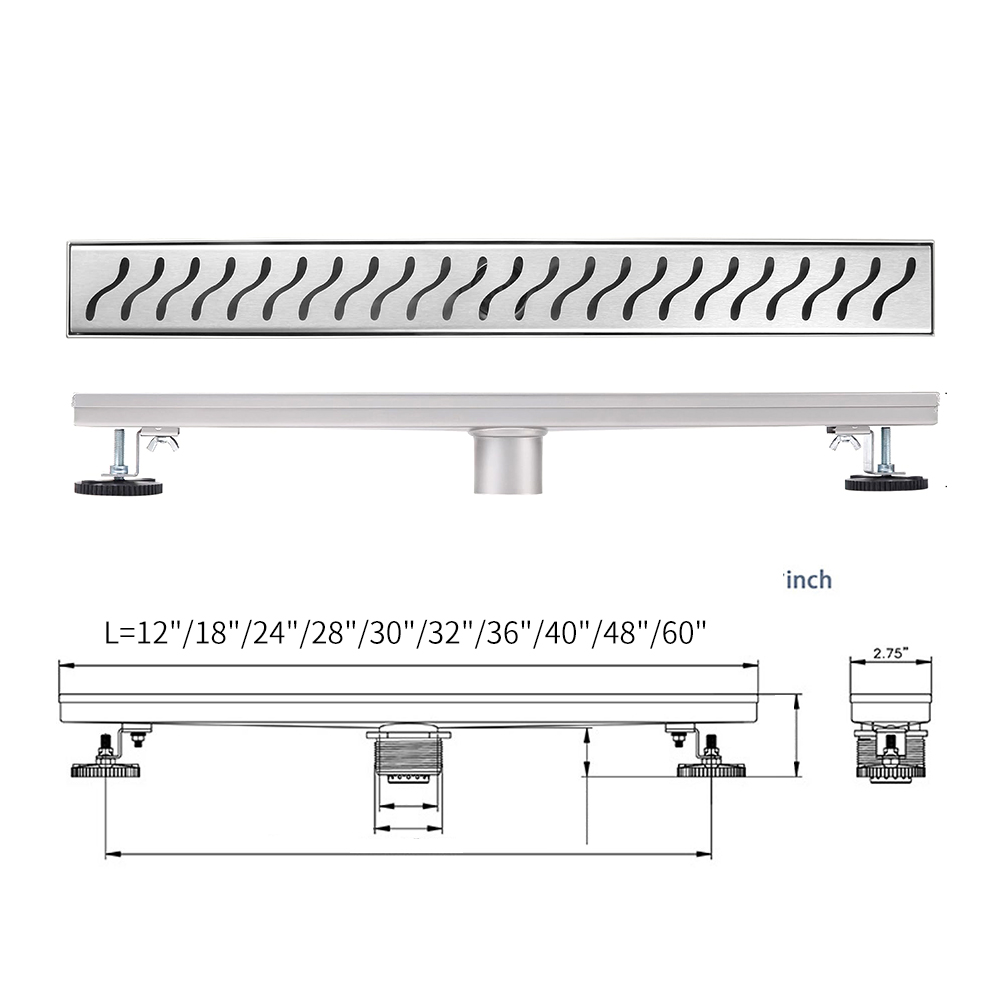

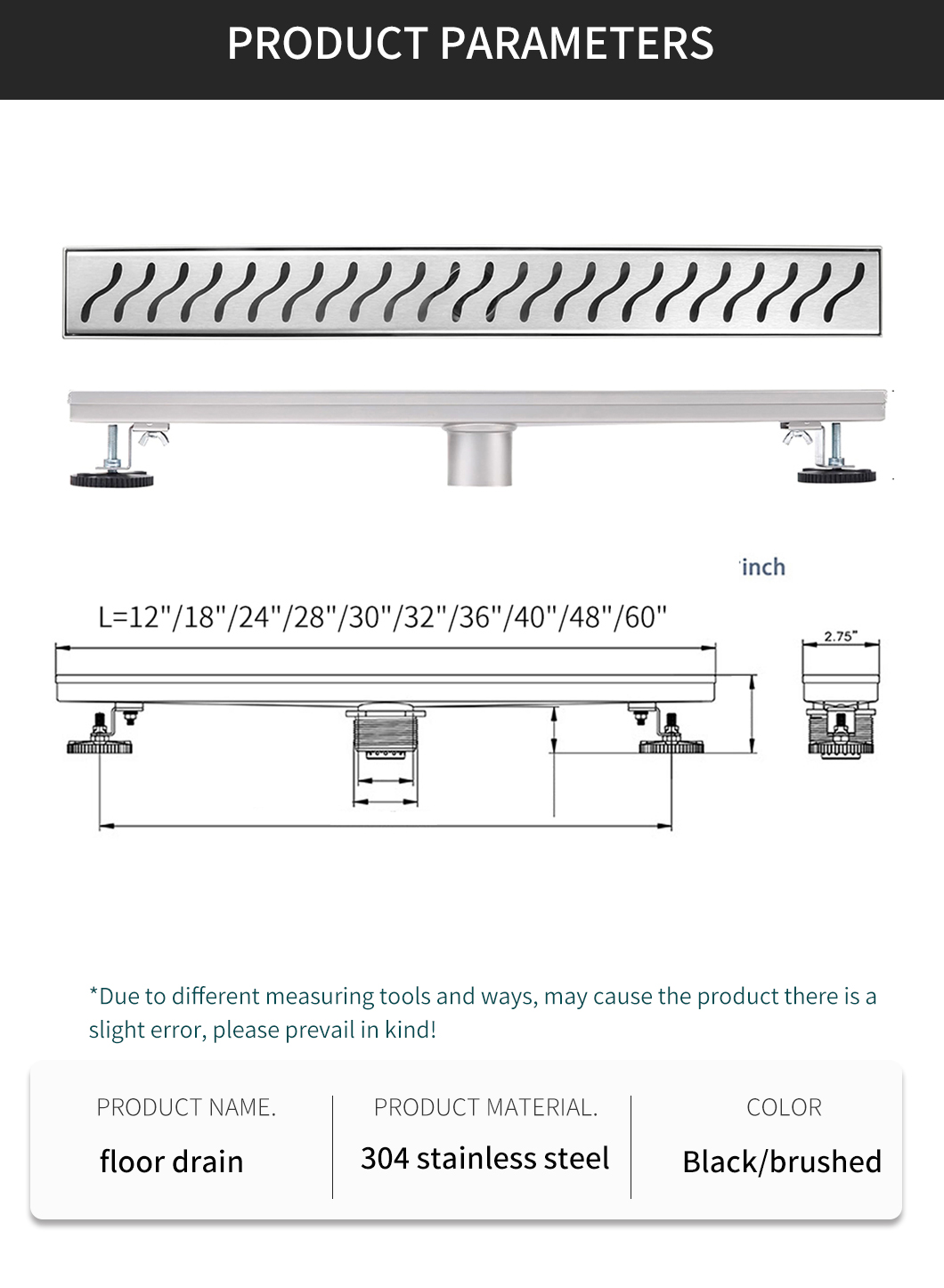

Parameter | Details |
Model Name | 41113 |

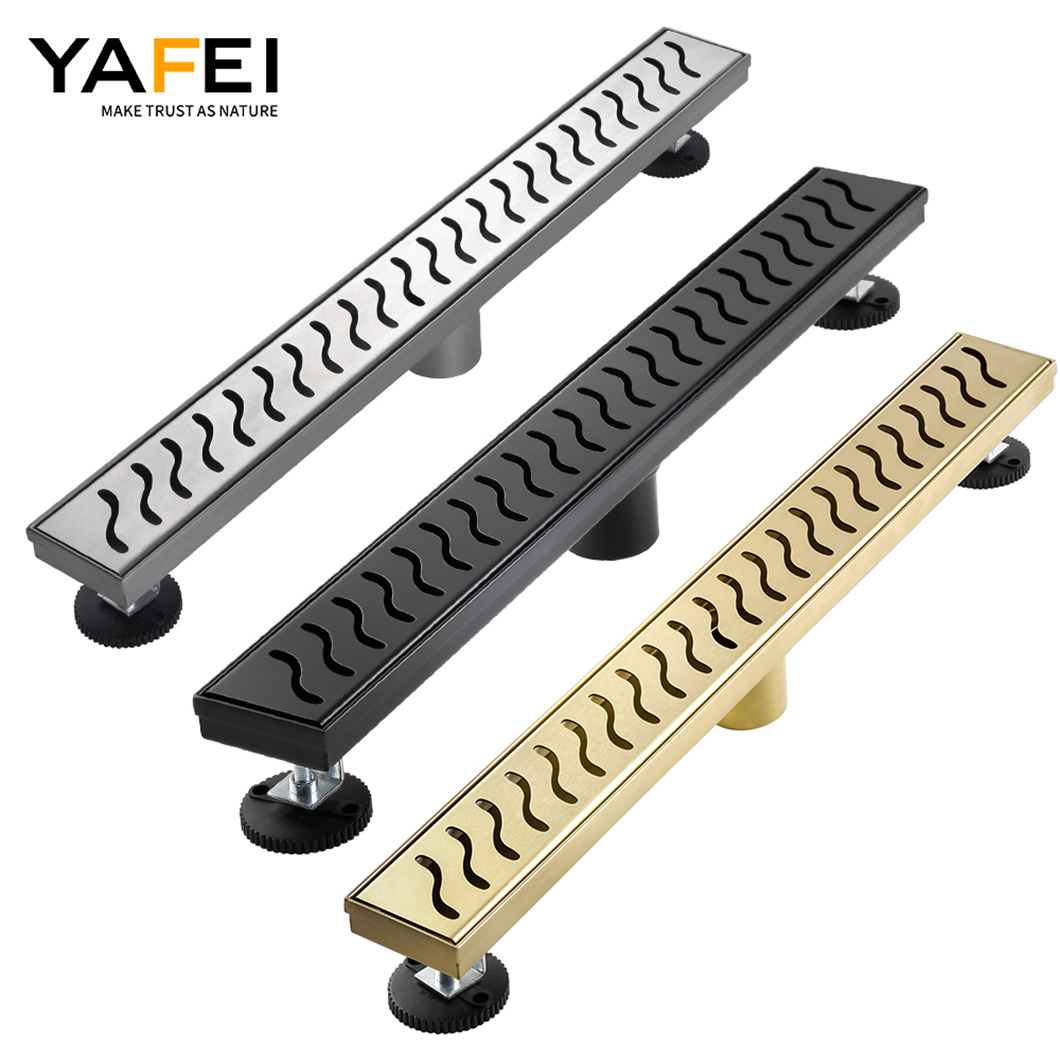

Color Options | Brushed Nickel, Matte Black, Rose Gold, Zirconium Gold, Bronze Black |
Length Available | 12", 24", 28", 32", 36" |
Outlet Diameter | 2 inch (compliant with standard plumbing systems) |
Width | 2.75 inch |
Material | 304 Stainless Steel |
Packaging | 1 set per box |
Adjustable Height Systems: 20-30mm vertical adjustment range for perfect tile alignment
Hair Capture Technology: Removable filter baskets with 2-3mm mesh size
Odor Lock Technology:
Water Seal: Traditional P-trap (requires regular use)
Dry Seal: Mechanical seals that block odors without water
Hybrid Systems: Combination of both technologies
Equipped with adjustable feet, this drain can be easily leveled to sit flush with your floor, adapting to concrete, wooden, or tiled subfloors. The side outlet simplifies connection to existing plumbing, making DIY or professional installation straightforward.
x-shaped design of the linear shower drain ensures that water flows quickly to the central drain, reducing residual moisture at the bottom

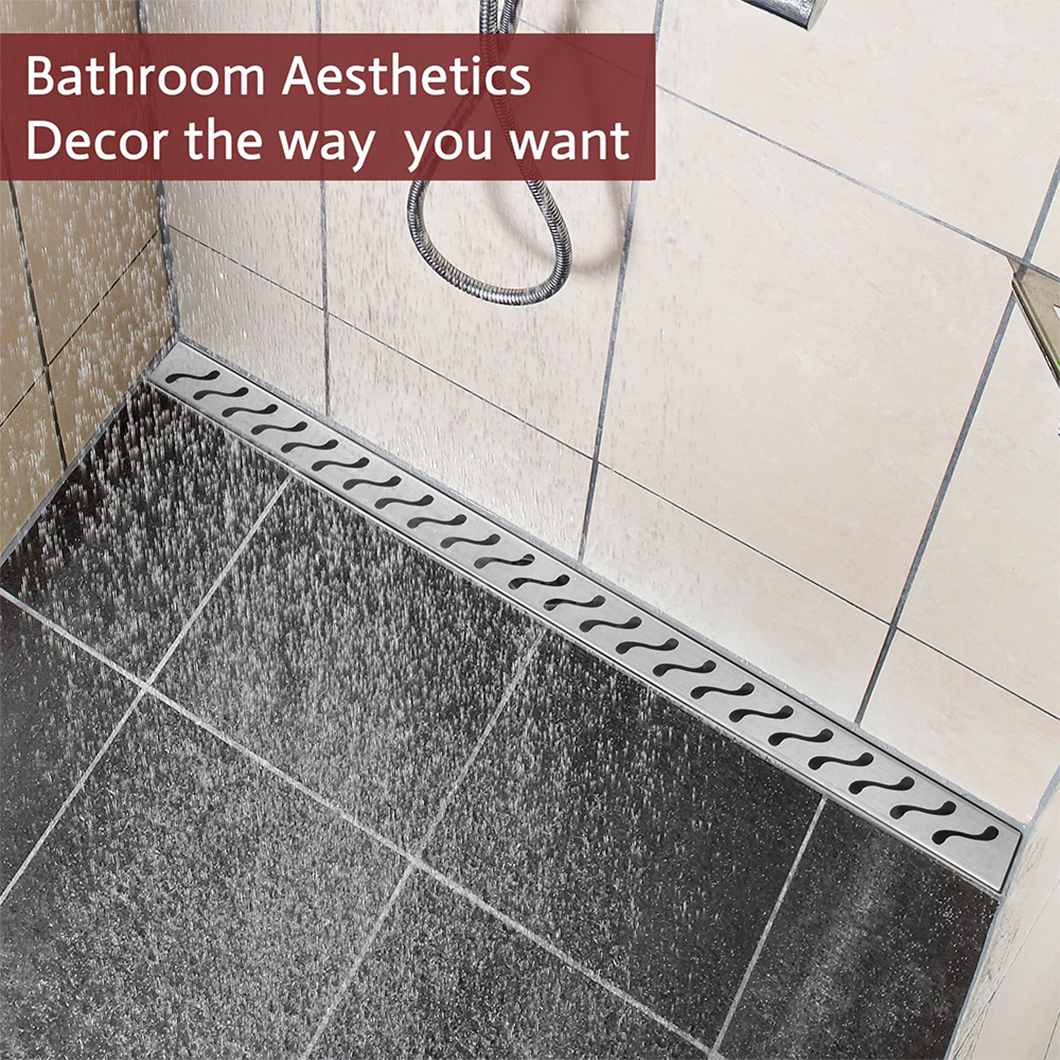

Suitable for home bathrooms, walk-in showers, and wet rooms, this drain keeps floors dry and clean. Its seamless design enhances the space’s visual appeal, while the hair filter reduces maintenance—ideal for families or busy households.
Suitable for high-traffic areas like hotels, spas, gym locker rooms, and restaurants. Its durable construction withstands heavy use, and efficient drainage prevents water buildup, ensuring safety and hygiene.
Use in kitchens near sinks or laundry rooms to drain excess water from washing machines. The rust-resistant material stands up to detergent and water exposure, maintaining functionality over time.
Protects against flooding in basements or garages by quickly draining standing water, reducing the risk of mold growth or floor damage.
Installation is crucial for performance
Surface Preparation: The floor must be properly sloped (typically 1-2%) towards the drain channel.
Waterproofing: A waterproof membrane must be correctly integrated with the drain unit to prevent leaks.
Drain Placement: The drain can be installed against a wall or in the center of the floor.
Professional Help Recommended: Due to the need for precision in sloping and sealing, professional installation is highly recommended to ensure functionality and avoid future problems
Regular maintenance is key to longevity
Regular Cleaning: Remove the grate periodically to clear debris and hair from the channel. Using a specialized cleaner can help dissolve soap scum and mineral buildup.
Deep Cleaning: For resin models, occasional use of professional cleaning agents is recommended to remove microscopic particles and maintain flow capacity
Check Seals and Traps: Inspect the trap mechanism periodically to ensure it seals properly against odors.
Linear Drain Material & Sizes: 24" length, 2.75" width, 2" central outlet. Black linear shower drain is made of durable AISI 304 stainless steel to protect against corrosion and rust. Heavy-duty steel grate ensures secure sealing and weight-bearing strength. Matte black plated drain cover is non-slip and scratch resistant
Faster Drainage: V-shaped drain sink design accelerates water flow to the central outlet, achieving 6.5-7 gallons/min (20% faster than traditional drains). Ideal for bathrooms, kitchens, balconies and basements, this black linear drain minimizes standing water
Easy to Install: Package includes step-by-step instructions and full accessories. Adjustable leveling feet on both sides allow the linear shower drain to be easily leveled with the floor. Threaded adapter adjusts the height of the rectangular floor drain and secures it to the base flange, leak-proof and compatible with most 2" PVC, ABS and cast iron drain flanges.
Easy to Install: Package includes step-by-step instructions and full accessories. Adjustable leveling feet on both sides allow the linear shower drain to be easily leveled with the floor. Threaded adapter adjusts the height of the rectangular floor drain and secures it to the base flange, leak-proof and compatible with most 2" PVC, ABS and cast iron drain flanges.
Parameter | Details |
Model Name | 41113 |
Color Options | Brushed Nickel, Matte Black, Rose Gold, Zirconium Gold, Bronze Black |
Length Available | 12", 24", 28", 32", 36" |
Outlet Diameter | 2 inch (compliant with standard plumbing systems) |
Width | 2.75 inch |
Material | 304 Stainless Steel |
Packaging | 1 set per box |
Adjustable Height Systems: 20-30mm vertical adjustment range for perfect tile alignment
Hair Capture Technology: Removable filter baskets with 2-3mm mesh size
Odor Lock Technology:
Water Seal: Traditional P-trap (requires regular use)
Dry Seal: Mechanical seals that block odors without water
Hybrid Systems: Combination of both technologies
Equipped with adjustable feet, this drain can be easily leveled to sit flush with your floor, adapting to concrete, wooden, or tiled subfloors. The side outlet simplifies connection to existing plumbing, making DIY or professional installation straightforward.
x-shaped design of the linear shower drain ensures that water flows quickly to the central drain, reducing residual moisture at the bottom
Suitable for home bathrooms, walk-in showers, and wet rooms, this drain keeps floors dry and clean. Its seamless design enhances the space’s visual appeal, while the hair filter reduces maintenance—ideal for families or busy households.
Suitable for high-traffic areas like hotels, spas, gym locker rooms, and restaurants. Its durable construction withstands heavy use, and efficient drainage prevents water buildup, ensuring safety and hygiene.
Use in kitchens near sinks or laundry rooms to drain excess water from washing machines. The rust-resistant material stands up to detergent and water exposure, maintaining functionality over time.
Protects against flooding in basements or garages by quickly draining standing water, reducing the risk of mold growth or floor damage.
Installation is crucial for performance
Surface Preparation: The floor must be properly sloped (typically 1-2%) towards the drain channel.
Waterproofing: A waterproof membrane must be correctly integrated with the drain unit to prevent leaks.
Drain Placement: The drain can be installed against a wall or in the center of the floor.
Professional Help Recommended: Due to the need for precision in sloping and sealing, professional installation is highly recommended to ensure functionality and avoid future problems
Regular maintenance is key to longevity
Regular Cleaning: Remove the grate periodically to clear debris and hair from the channel. Using a specialized cleaner can help dissolve soap scum and mineral buildup.
Deep Cleaning: For resin models, occasional use of professional cleaning agents is recommended to remove microscopic particles and maintain flow capacity
Check Seals and Traps: Inspect the trap mechanism periodically to ensure it seals properly against odors.
