YF41108 Linear Shower Drain with Quadrato Pattern Grate Bathroom Professional 304 Stainless Steel Shower Floor Drain

YF41108 Linear Shower Drain with Quadrato Pattern Grate Bathroom Professional 304 Stainless Steel Shower Floor Drain

Our shower drain strainer can easily collect shedding hairs when wash your heads, filter hair and particulate impurities effectively, avoid the blocking of bathroom floor drain.

Quantity:
Color:	1 2
Availability:





Inquire Add to Basket

Model:
41108

Product Description

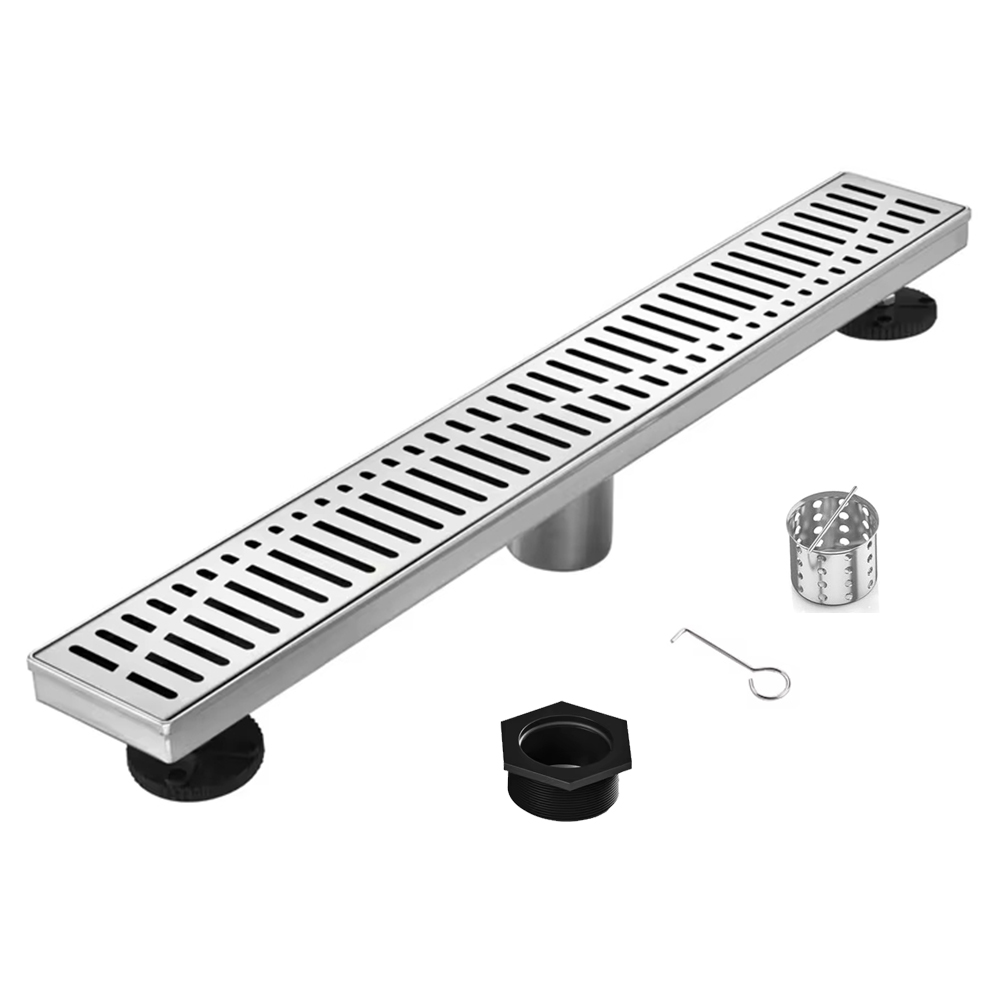

Shower Drain with Removable Strainers

Shower Drain Made of SUS 304 Stainless Steel, Brushed Nickel Finish

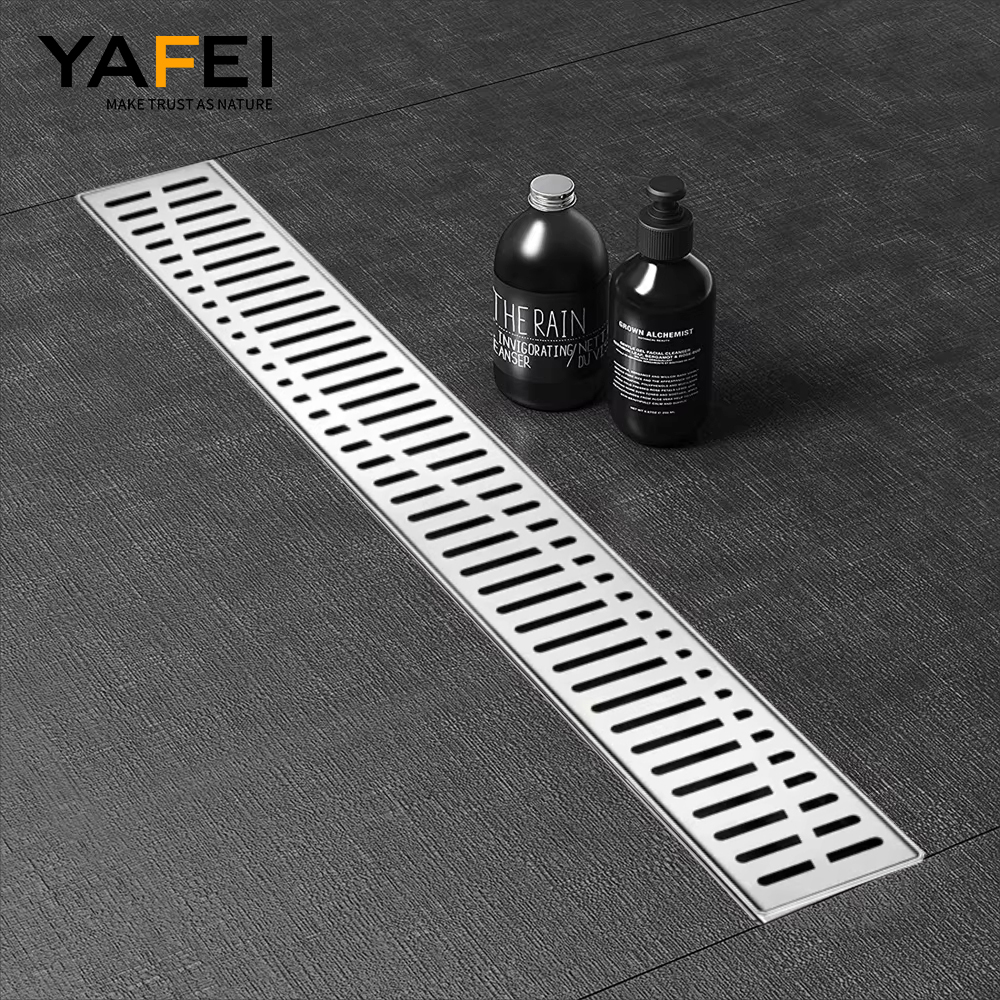

This professional-grade linear floor drain, featuring a Quadrato geometric grille design, offers a solution that combines efficient drainage with minimalist aesthetics for high-end bathroom spaces through military-grade stainless steel material and modular drainage structure. It is particularly suitable for large-format tile installations and barrier-free shower room projects.

Five Key Technical Highlights

Aerospace Materials and Structures

3mm thick 304 stainless steel one-piece formed (with more than 18% chromium content)

Laser-cut Quadrato grille (5×5mm aperture, golden ratio)

Backside reinforcing rib design (load-bearing capacity ≥ 500kg/m²)

Product Overview

Barrier-free design
Full flat installation (±0mm error from the finished surface of the floor tiles)
Standard anti-slip texture (friction coefficient 0.7, in compliance with DIN51130)
Detachable hair collection box (with transparent window design)
Professional Parameters
Item Specification
Material 304 Stainless Steel (brushed surface finish)
Grille Type Quadrato Geometric Matrix
Standard Length 600/800/1000mm (customization available)
Drainage Capacity 2.8L/s (at 50mm water head)
Compatible Pipe Diameter DN50/DN75 (GB/EU standards available)
Installation Revolution
✔ Sandwich Structure Waterproof System
Upper layer: Tile adhesive layer
Middle layer: SCHLUTER®-KERDI waterproof membrane connection
Lower layer: Prefabricated slope drainage base plate

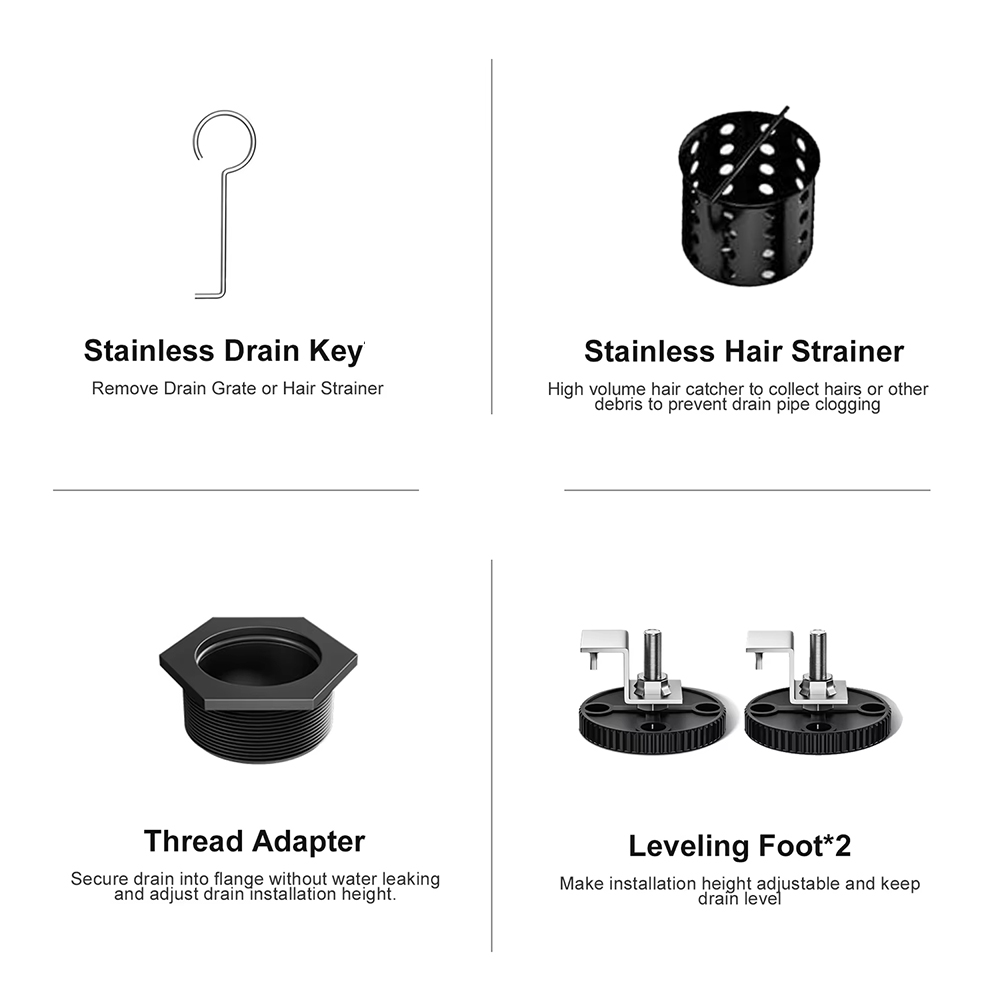

Fine-tune the bracket design
Height adjustable range: ±15mm
Laser positioning fixture (including QR code for installation tutorial)

Product Specifications

Parameter	Details
Model Name	41108

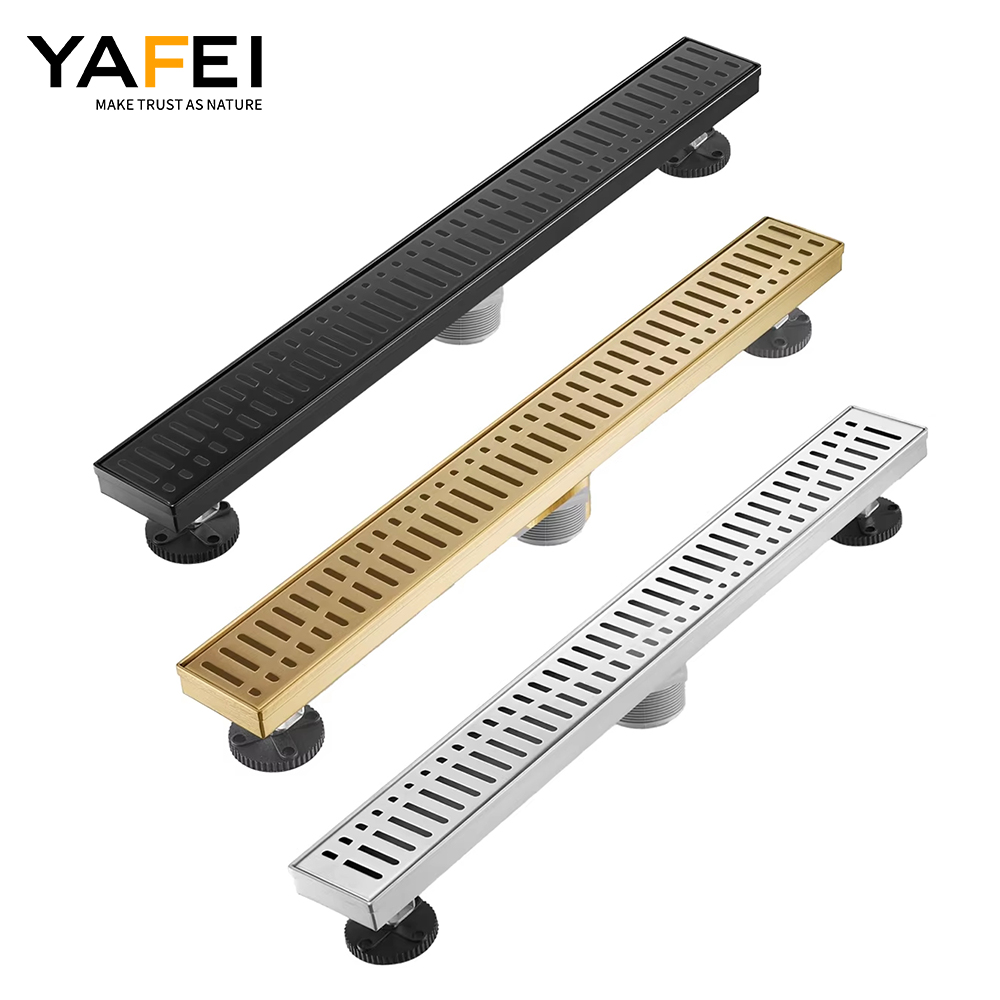

Color Options	Brushed Nickel, Matte Black, Rose Gold, Zirconium Gold, Bronze Black

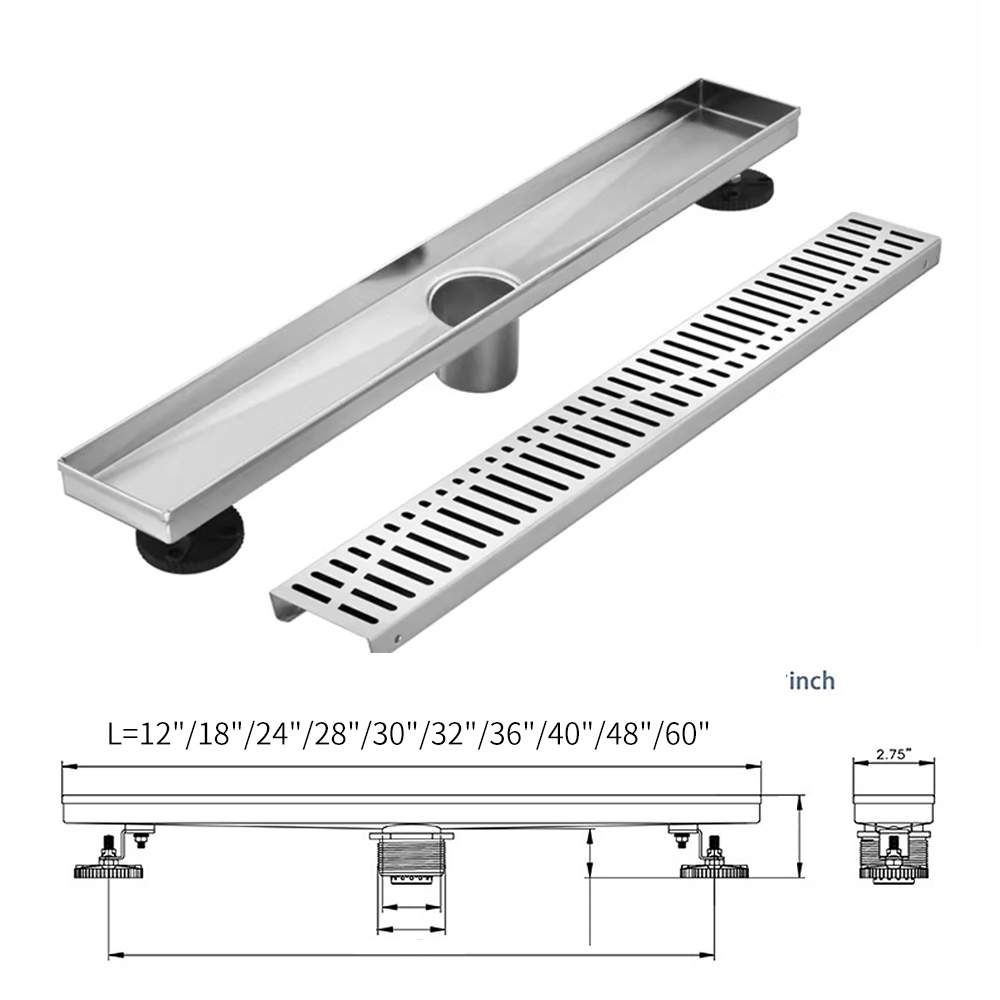

Length Available	12/18/24/28/36/48 inch Length x 2.8 inch Width x 2.5 inch Heigh
Outlet Diameter	2 inch (compliant with standard plumbing systems)
Width	2.5 inch
Material	304 Stainless Steel
Packaging	1 set per box
